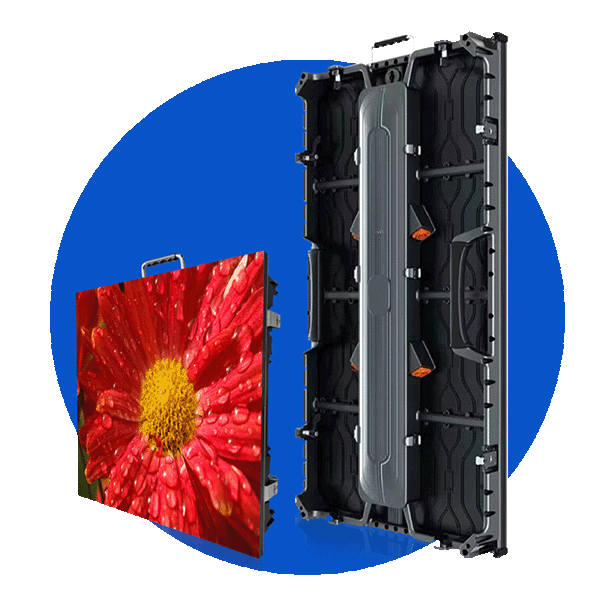

全彩户外防水LED租赁显示屏
- 硬连接，无线材
- 可拆卸后盖，操作简单
- IP65防护等级高，防水防尘
- 压铸铝材框架结构，不易变形
- 适用于舞台视频背景墙
产品特点
产品参数
相关产品
立刻询价
压铸铝框架外壳
·刚性强，不易变形，缝合更精准
超轻薄设计
500X500mm 仅 7.5 kg/平方
500X1000mm 仅14 kg/平方
快速组装
·面板两侧各有2个快锁,操作快捷，也保证了整屏的平整度
应用案例
产品参数
| Model Number | P2.604 | P2.976 | P3.91 | P4.81 |
| Pixel Pitch(MM) | 2.604 | 2.976 | 3.91 | 4.81 |
| LED Standard | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Density | 147456Dot/m² | 112896Dot/m² | 65536dot/㎡ | 43264dot/㎡ |
| Pixel Composition | RGB | RGB | RGB | RGB |
| Cabinet Size（MM） | 500X500MM / 500X1000MM | 500X500MM/ 500X1000MM | 500X500MM/ 500X1000MM | 500X500MM/ 500X1000MM |
| Thickness（MM） | 83MM | 83MM | 83MM | 83MM |
| Cabinet Weight | 7.5kg / 14kg | 7.5kg / 14kg | 7.5kg / 14kg | 7.5kg / 14kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Ues Environment | outdoor | outdoor | outdoor | outdoor |
| Brightness | 3500-4500nits | 3500-4500nits | 3500-4500nits | 3500-4500nits |
| Maintenance Mode | Front/Rear Service | Front/Rear Service | Front/Rear Service | Front/Rear Service |
| Refresh Rate | 1920HZ-3840HZ | 1920HZ-3840HZ | 1920HZ-3840HZ | 1920HZ-3840HZ |
| Viewing Angle | 160°/140°（H/V） | 160°/140°（H/V） | 160°/140°（H/V） | 160°/140°（H/V） |
| Driving Method | 1/21 | 1/28 | 1/16 | 1/13 |
| IP Rating | IP65 | IP65 | IP65 | IP65 |
| Working Temperature | -10℃~+45℃ | -10℃~+45℃ | -10℃~+45℃ | -10℃~+45℃ |
| Continuous working time | ＞72hours | ＞72hours | ＞72hours | ＞72hours |
| Life Span | ≥100000Hours | ≥100000Hours | ≥100000Hours | ≥100000Hours |
